FoodieBot - Developer Guide

1. Introduction

1.1. Software Overview

FoodieBot is a campus food application which can help users look for food they want, by recommending the canteens nearest to them, providing randomized food suggestions, helping users plan their budget and provide info on food around NUS. FoodieBot is the one stop application to solve all meal decision problems in NUS.

1.2. Purpose

The purpose of this document is to describe the architecture and system design of the FoodieBot. This documentation is for anyone who wishes to understand more about FoodieBot and how it works.

1.3. Audience

Our target users are students, staff and tourists, in general anyone who comes to or visits NUS. In particular, for the indecisive user, this application can give a random food suggestion tailored to each user based on their budget and/ or past food selections etcetera.

2. Setting up

Our application is being managed by the dependency management tool Gradle. The project is available at https://github.com/AY1920S2-CS2103T-F11-3/main. After cloning the repository, you can follow these steps:

For IntelliJ users

Run gradle build.
Run gradle run.

3. Definitions

Defined below are common terminology that will be used frequently throughout this document.

Context: Refers to which state the application is in. This term is used interchangeably with user interface.

4. Design

4.1. Architecture

Figure 1. Architecture Diagram

The Architecture Diagram given above explains the high-level design of the App. Given below is a quick overview of each component.

The .puml files used to create diagrams in this document can be found in the diagrams folder. Refer to the Using PlantUML guide to learn how to create and edit diagrams.

Main has two classes called Main and MainApp. It is responsible for,

At app launch: Initializes the components in the correct sequence, and connects them up with each other.
At shut down: Shuts down the components and invokes cleanup methods where necessary.

Commons represents a collection of classes used by multiple other components. The following class plays an important role at the architecture level:

LogsCenter : Used by many classes to write log messages to the App’s log file.

The rest of the App consists of four components.

UI: The UI of the App.
Logic: The command executor.
Model: Holds the data of the App in-memory.
Storage: Reads data from, and writes data to, the hard disk.

Each of the four components

Defines its API in an interface with the same name as the Component.
Exposes its functionality using a {Component Name}Manager class.

For example, the Logic component (see the class diagram given below) defines it’s API in the Logic interface and exposes its functionality using the LogicManager class.

Figure 2. Class Diagram of the Logic Component

How the architecture components interact with each other

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command favorites set 1.

Figure 3. Component interactions for favorites set 1 command

The sections below give more details of each component.

4.2. UI component

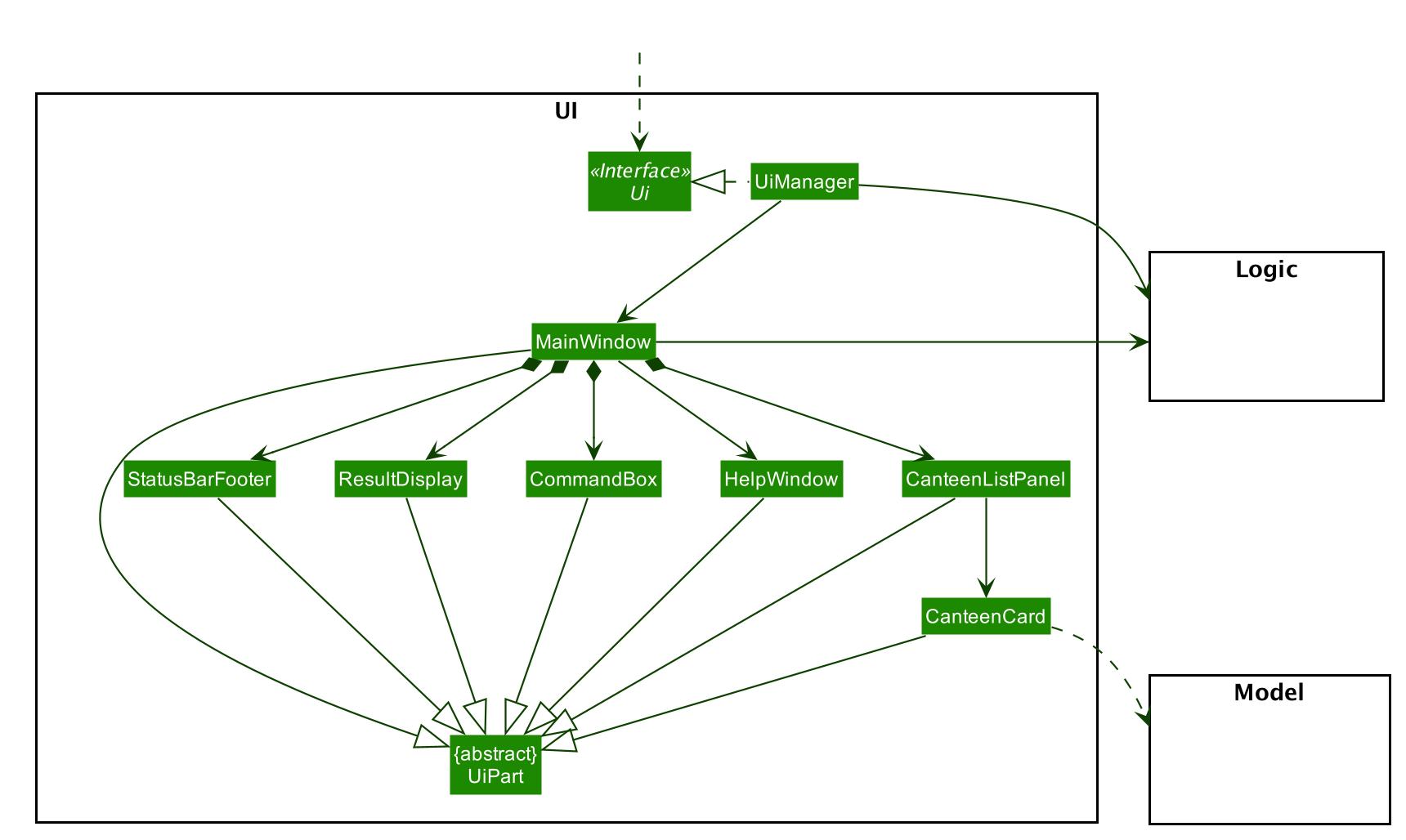

Figure 4. Structure of the UI Component

API : Ui.java

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, CanteenListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class.

The UI component uses JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

Executes user commands using the Logic component.
Listens for changes to Model data so that the UI can be updated with the modified data.

4.3. Logic component

Figure 5. Structure of the Logic Component

API : Logic.java

Logic uses the FoodieBotParser class to parse the user command.
This results in a Command object which is executed by the LogicManager.
The command execution can affect the Model (e.g. adding a canteen).
The result of the command execution is encapsulated as a CommandResult object which is passed back to the Ui.
In addition, the CommandResult object can also instruct the Ui to perform certain actions, such as displaying help to the user.

The lifeline for DeleteCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

4.4. Model component

Figure 6. Structure of the Model Component

API : Model.java

The Model,

stores a UserPref object that represents the user’s preferences.
stores the FoodieBot data.
exposes an unmodifiable ObservableList<Canteen> that can be 'observed' e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
does not depend on any of the other three components.

As a more OOP model, we can store a Tag list in FoodieBot, which Canteen can reference. This would allow FoodieBot to only require one Tag object per unique Tag, instead of each Canteen needing their own Tag object. An example of how such a model may look like is given below.

4.5. Storage component

Figure 7. Structure of the Storage Component

API : Storage.java

The Storage component,

can save UserPref objects in json format and read it back.
can save the FoodieBot data in json format and read it back.

4.6. Common classes

Classes used by multiple components are in the seedu.foodiebot.commons package.

4.7. Design Considerations

4.7.1. Aspect: Executing similar tasks but for different objects

e.g. Selecting canteens, stalls, food.

Alternative 1 (current choice): Create a context class that executes commands based on the context the user is in.
- Pros: Higher quality user interface, user does not need to remember so many commands.
- Cons: More difficult to implement.
Alternative 2: Create different commands for different objects
- Pros: Easier to implement. There will not be any chance of overlapping commands
- Cons: Reduce quality of user interface as user has to remember many different commands.

5. Implementation

5.1. List Command

The list command is facilitated by ListCommandParser. It extends FoodieBotParser to handle list canteen commands.

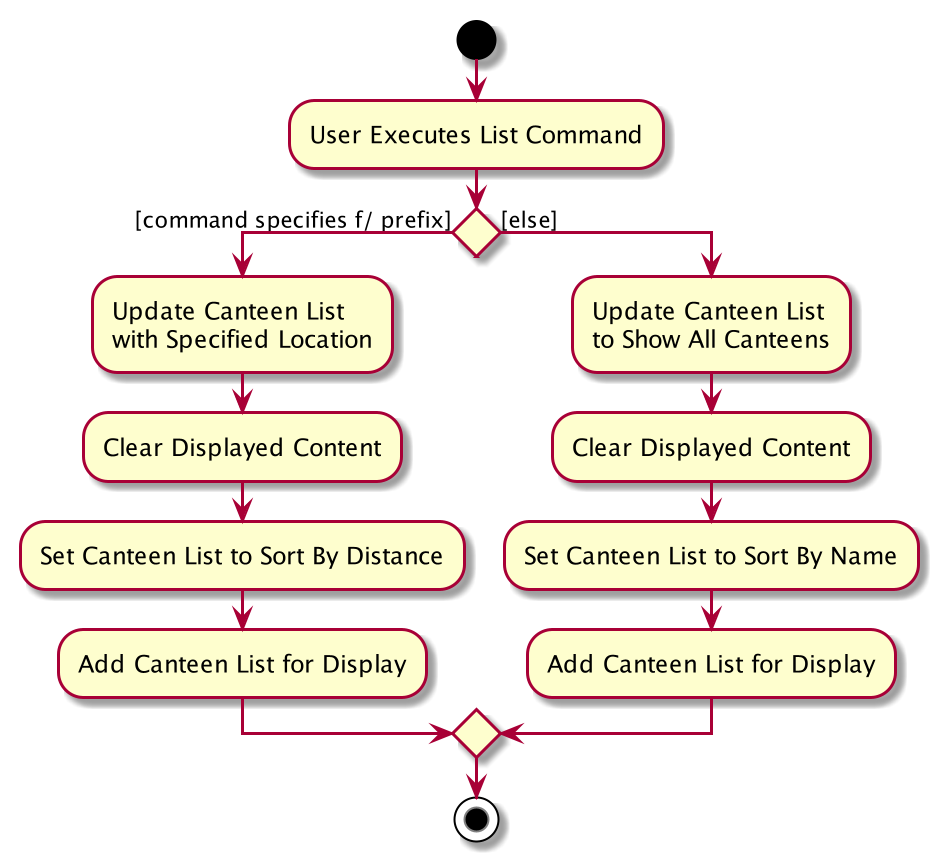

The following activity diagram summarizes what happens when a user executes a list command:

5.1.1. List Command Implementation

It implements the following operations:

ListCommand#execute() — Updates the canteen list to show all the canteens or filtered by location.

ListCommand extends Command with Command#execute().

ListCommandParser#arePrefixesPresent() — Checks if the prefixes specified in parse() are found in the command entered by the user.
ListCommandParser#parse() — Identifies if prefixes have been specified and handles them respectively.
For example, if ListCommand has the nearest block name passed through as a parameter list f\com1, ListCommand will filter the canteen list with the given block name with new ListCommand("com1")

The following sequence diagram shows how the list operation works:

5.1.2. List Design Considerations

Aspect: User command format

Alternative 1 (current choice): list f/com
- Pros: Uses only a prefix to get the intended functionality with list.
- Cons: f/ is an optional prefix, user might forget that it exists as no error is shown in the command result box
Alternative 2: find nearest BLOCK_NAME
- Pros: It is not required to remember any prefix.
- Cons: Can be confusing whether find shows the list of canteens, food, or location of the canteen on campus. Find has to be followed by nearest otherwise it does not come natural to sort by distance.

5.2. Budget Command

The budget command is implemented by the BudgetCommand class.

This command is accessed by the LogicManager#execute() to set the budget for the user or to view the current budget of the user.

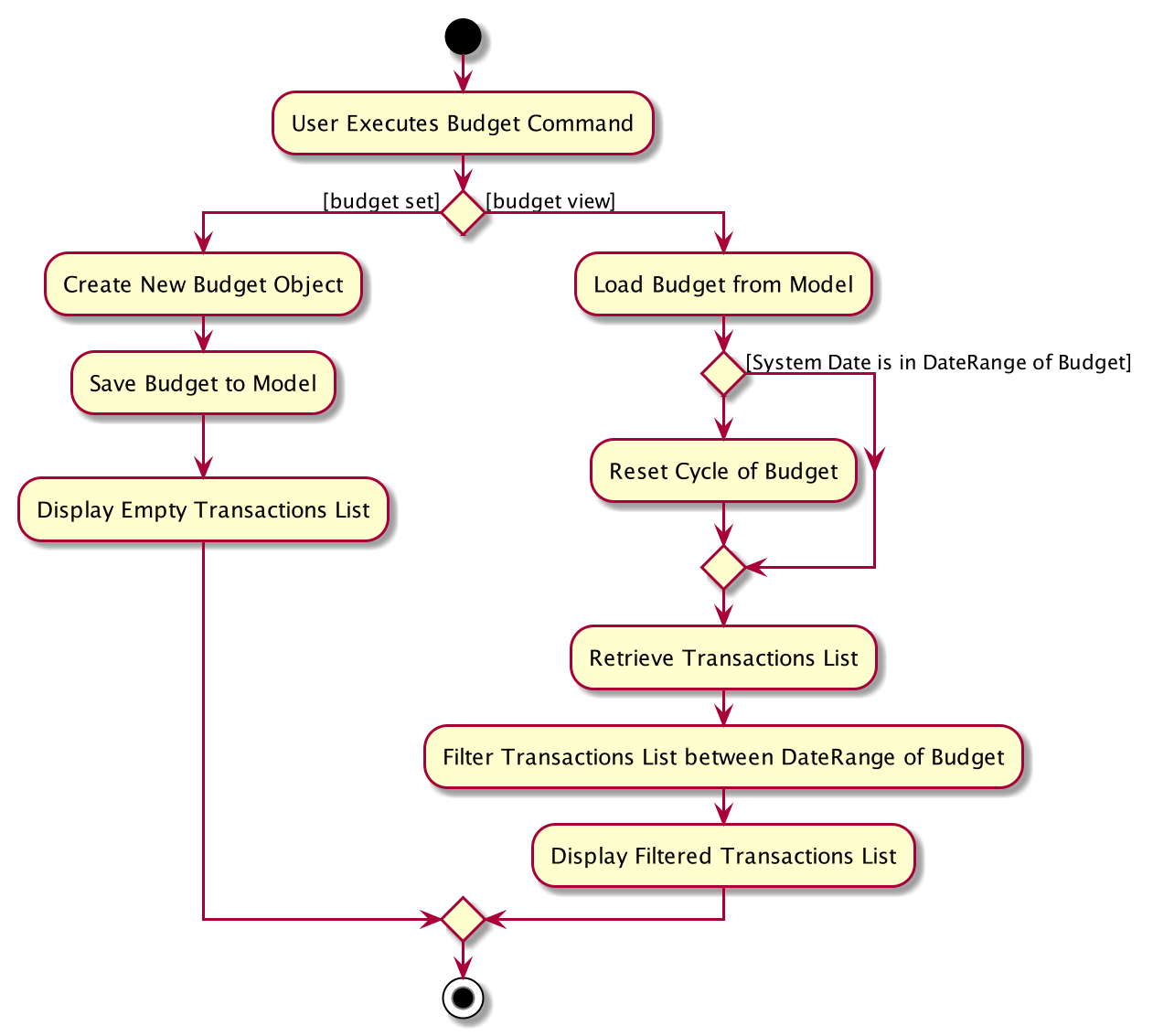

The following activity diagram illustrate the different scenario for the budget command:

5.2.1. Budget Command Implementation

The LogicManager first executes FoodieBotParser to create a BudgetCommandParse object.
BudgetCommandParse then parses the budget command to determine if the action of the budget is set, view or invalid.
This process returns a new BudgetCommand object.
The LogicManager then access BudgetCommand#execute() to determine the type of execution.
If the action is set then the budget object saves the user input accordingly.
If the action is view then the budget is retrieved from the storage.
The BudgetCommand#execute() returns a CommandResult object to the LogicManger.

Below is the sequence diagram that summarizes what happens during the execution of the budget command:

5.2.2. Budget Design Considerations

Aspect: `Budget view` shows the transactions screen

Alternative 1 (current choice): Budget view displays the current budget in the command feedback panel.
- Pros: Budget can be viewed anywhere in FoodieBot.
- Cons: -
Alternative 2:
- Pros: Can set a realistic budget after looking at past spendings.
- Cons: Increased the coupling of budget and transactions but the intended functionality is different. The user may not want to type budget to rate a food item.

5.3. Enter Command

The enter command is implemented by either the EnterCanteenCommand class or the EnterStallCommand class.

These commands are accessed by the LogicManager#execute() to switch the user interface accordingly based on where the user is at.

The following activity diagram illustrates the different scenario for the enter command:

5.3.1. Enter Command Implementation

The LogicManager first executes FoodieBotParser which parses the user input into a ParserContext to determine if the user is currently in the main context.
If the user has input enter on the main context, it creates a EnterCanteenCommandParser object that parses in the user input to determine which canteen to enter.
Otherwise if the user has Input enter on the stall context, it creates a EnterStallCommandParser object that parses in the user input to determine which stall to enter This process returns a new EnterCanteenCommand / EnterStallCommand object to the LogicManager accordingly.
The LogicManager then access EnterCanteenCommand#execute() / EnterStallCommand#execute() to switch the current display to the stalls/food available within the selected canteen/stall.
Both EnterCanteenCommand#execute() and EnterStallCommand#execute() returns a CommandResult object to the LogicManger.

Below is the sequence diagram that summarizes what happens during the execution of the enter command:

5.3.2. Enter Design Considerations

Aspect: Select command to be used instead of Enter

Alternative 1 (current choice): enter
- Pros: enter only handles the viewing of canteens and stalls.
- Cons: Might accidentally type select as the select command is also implemented in FoodieBot.
Alternative 2: select
- Pros: one command to select canteens, stalls and food items.
- Cons: Additional checks for select command to detect if a food is chosen, so that it gets added into transactions.

5.4. Favorites Command

The favorites command is implemented by the FavoritesCommand class.

This command is accessed by the LogicManager#execute() to edit or view the favorite on food items.

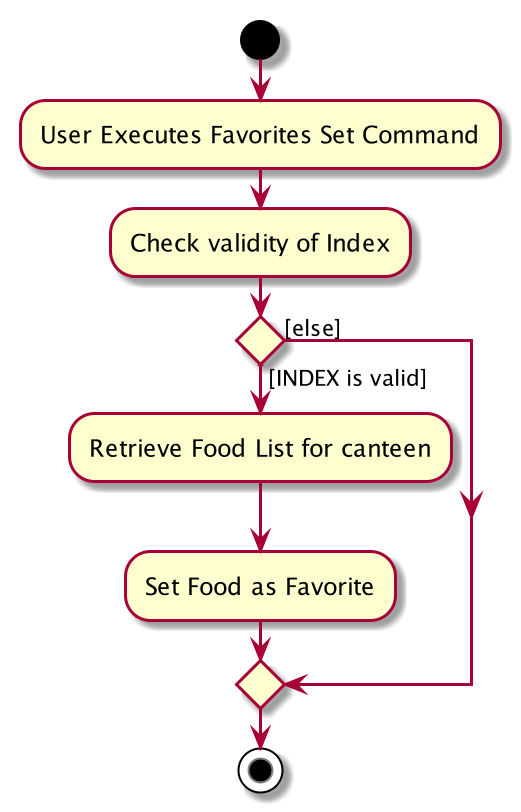

The following activity diagram illustrates what happens when a user executes the favorite command:

5.4.1. Favorites Command Implementation

The LogicManager first executes FoodieBotParser to create a FavoritesCommandParser object.
FavoritesCommandParser then parses the user input to determine if the favorite command is set, remove, or view. This process returns a new FavoritesCommand object.
The LogicManager then access FavoritesCommand#execute().
If set was chosen, the selected food item favorite is then updated.
If view was chosen, a list of favorite food items are displayed.
If remove was chosen, the respective food item is removed from the favorite food item list.
FavoritesCommand#execute() creates a new ActionCommandResult that extends the CommandResult which is to be returned to the LogicManager.

Below is the sequence diagram that summarizes what happens during the execution of the favorites command:

5.4.2. Favorites Design Considerations

Aspect: `favorites set` operates on stalls and food items

Alternative 1 (current choice): favorites set operate only for food items
- Pros: Only need to maintain one list of food items.
- Cons: Does not allow stalls to be added to favorites, the randomize feature cannot take into account users' stall preferences.
Alternative 2: favorites set operate for both stalls and food items
- Pros: Can favorite a single stall rather than adding all the food items in the stall.
- Cons: Cannot identify which food in particular the user likes from the stall. For instance, the user might not like spicy food and the stall sells a food item with that food characteristic.

5.5. Filter Command

The filter command is implemented by the FilterCommand class.

This command is accessed by the LogicManager#execute() to filter outputs according to the user input.

The following activity diagram illustrates what happens when a user executes the filter command:

5.5.1. Filter Command Implementation

The LogicManager first executes FoodieBotParser to create a FilterCommandParser object.
FilterCommandParser then parse the filter command to determine if the filter output should be by price range or tags
This process returns a new FilterCommand object.
The LogicManager then access FilterCommand#execute() which filter the options based on the user input and the context where filter is called.
If the filter option is based on a price, the current context has to be the stall, otherwise an error message is thrown.
If the option is based on a tag, the filter option will return a list of options based on the current context.
FilterCommand#execute() returns a CommandResult to the LogicManager.

Below is the sequence diagram that summarizes what happens during the execution of the filter command:

5.5.2. Filter Design Considerations

Aspect: `filter` allow partial name tag filters

Alternative 1 (current choice): filter is using the strict match case.
- Pros: Can be accurate in the filter, for example, typing filter ex with not return both food that are expensive and or considered as extras in a combo set.
- Cons: -
Alternative 2: filter allows partial name tag search.
- Pros: More lenient in tag search.
- Cons: Long list of filter results.

5.6. Goto Command

The goto command is implemented by the GoToCanteenCommand class.

This command is accessed by the LogicManager#execute() to display the direction to a canteen based on the user input.

The following activity diagram illustrates what happens when a user executes the goto command:

5.6.1. Goto Command Implementation

The LogicManager first executes FoodieBotParser to create a GoToCanteenCommandParser object.
GoToCanteenCommandParser then parses the goto command to determine the canteen name and the current location.
This process returns a new GoToCanteenCommand object.
The LogicManager then access GoToCanteenCommand#execute() to retrieve the directions based on the user input.
GoToCanteenCommand#execute() creates a new DirectionsCommandResults that extends the CommandResult which is to be returned to the LogicManager.

Below is the sequence diagram that summarizes what happens during the execution of the goto command:

5.6.2. Goto Design Considerations

Aspect: Command format

Alternative 1 (current choice): goto CANTEEN_INDEX f/CURRENT_LOCATION
- Pros: Displays the directional instructions only for the current location to the canteen.
- Cons: If no directions are found for the current location to canteen, the user has to try another location by changing it in the command box.
Alternative 2: directions shows directions categorised by blocks. For example,
```
//example snippet
Com1
1. To Nus Flavors:
...
2. To The Deck:
...
.
Utown
3. To Nus Flavors:
...
4. To The Deck:
...
.
//end of example
```
- Pros: It is not required to enter any prefix or remember any block name.
- Cons: Display a list of possible directional instructions of current locations to the canteen. One has to scroll down the list to find the correct list item to show the directions.

5.7. Randomize Command

The randomize command is implemented by the RandomizeCommand class.

This command is accessed by the LogicManager#execute() to generate a random stall option based on the user input.

The following activity diagram illustrates the different scenario for the randomize command:

5.7.1. Randomize Command Implementation

The LogicManager first executes FoodieBotParser to create a RandomizeCommandParser object.
RandomizeCommandParser then parses the randomize command to separate the prefix if any and return a command object. In this case a RandomizeCommand object is created and returned to the LogicManager.
The LogicManager then access RandomizeCommand#execute().
From RandomizeCommand#execute(), randomize objects are called to generate a random stall option based on the user input.
The RandomizeCommand#execute() returns a CommandResult object to the LogicManger.

Below is the sequence diagram that summarizes what happens during the execution of the randomize command:

5.7.2. Randomize Design Considerations

Aspect: Context where `randomize c/` can be called from

Alternative 1 (current choice): randomize c/ function is only called from the canteen context.
- Pros: Only allow the canteen index or name shown in the displayed list to be entered with the prefix.
- Cons: Prefix is necessary to indicate that randomize works with one canteen only.
Alternative 2 : randomize c/ can be called anywhere within FoodieBot.
- Pros: -
- Cons: The index might not be bound to the canteen when index is used.

5.8. Rate Command

The rate command is implemented by the RateCommand class.

This command is accessed by the LogicManager#execute() to rate a food item.

The following activity diagram illustrates what happens when a user executes the rate command:

5.8.1. Rate Command Implementation

The LogicManager first executes FoodieBotParser to create a RateCommandParser object.
RateCommandParser then parse in the user input to ensure that the rate command is only use in the transaction context and that the inputs are valid.
This process creates and returns a RateCommand object to the LogicManager.
The LogicManager then access the RateCommand#execute() to retrieve the food item from the transaction storage and update the rating of the food.
The RateCommand#execute() returns a CommandResult object to the LogicManger.

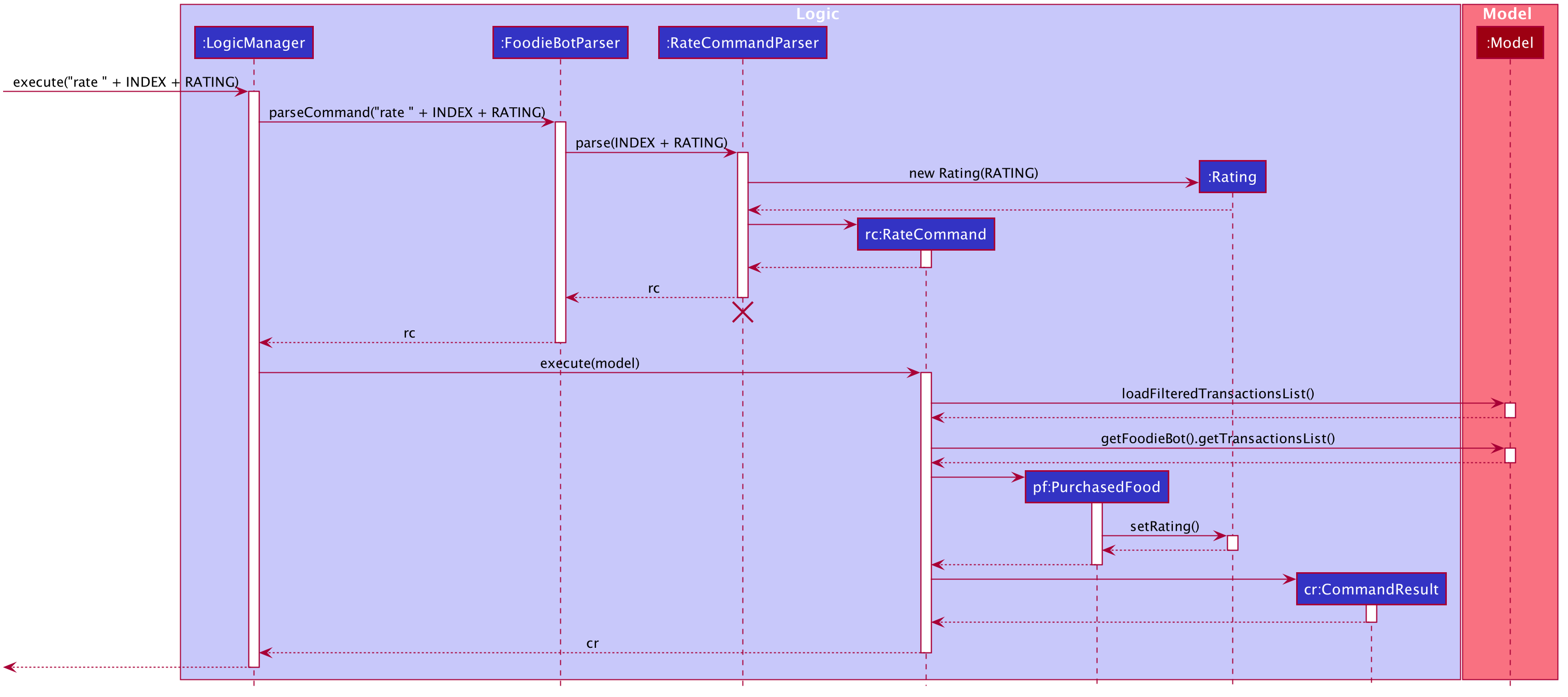

Below is the sequence diagram that summarizes what happens during the execution of the rate command:

5.8.2. Rate Design Considerations

Aspect: Rate command allows 0

Current choice: Rating starts from 1.
- Pros: Does not cause confusion whether a rating of 0 means food item is not rated.
- Cons: Cannot remove a rating by setting it to 0.

5.9. Review Command

The review command is implemented by the ReviewCommand class.

This command is accessed by the LogicManager#execute() to review a food item.

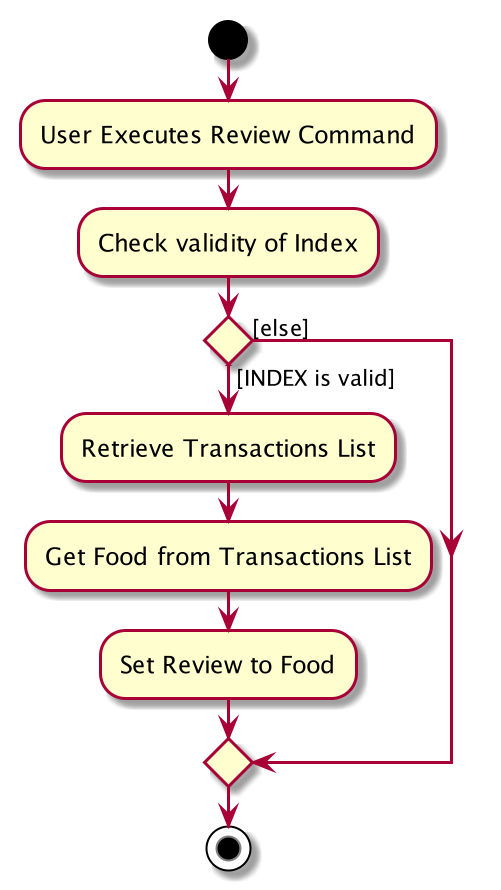

The following activity diagram illustrates what happens when a user executes the review command:

5.9.1. Review Command Implementation

The LogicManager first executes FoodieBotParser to create a ReviewCommandParser object.
ReviewCommandParser then parse in the user input to ensure that the review command is only use in the transaction context and that the inputs are valid.
This process creates and returns a ReviewCommand object to the LogicManager.
The LogicManager then access the ReviewCommand#execute() to retrieve the food item from the transaction storage and update the review of the food.
The ReviewCommand#execute() returns a CommandResult object to the LogicManger.

Below is the sequence diagram that summarizes what happens during the execution of the review command:

5.9.2. Review Design Considerations

Aspect: `review` uses a separate screen

Alternative 1 (current choice): review 1 this is a message
- Pros: Able to update a review message conveniently.
- Cons: Review message may be too long which may not fit within the ui card.
Alternative 2: review INDEX. FoodieBot shows the review edit screen to type a review message.
- Pros: Remove the need to do any checking on prefixes.
- Cons: A valid command can be entered but not recognised. The user has to accept the change to navigate away. If the back command is accepted, the user can’t enter the single word back as the review message.

5.10. Report Command

The report command is implemented by the ReportCommand class.

This command is accessed by the LogicManager#execute() to review a food item.

The following activity diagram illustrates what happens when a user executes the report command:

5.10.1. Report Command Implementation

The LogicManager first executes FoodieBotParser to create a ReportCommandParser object.
ReportCommandParser then parses an optional user input to determine the period of report to display.
This Process returns a ReportCommand object to the LogicManager.
The LogicManager then access ReportCommand#execute().
The ReportCommand#execute() retrieves the transaction list from storage and displays a list adapted to a report format within the given period, or all transactions if the period is not given.
The ReportCommand#execute() returns a CommandResult object to the LogicManger.

Below is the sequence diagram that summarizes what happens during the execution of the report command:

5.10.2. Report Design Considerations

Aspect: Functionality aspect of report

Alternative 1 (current choice): report
- Pros: Shows a generated report when the command is entered.
- Cons: -
Alternative 2: report command to be combined with transactions
- Pros: A report can be generated right from transactions which means one less command to manage.
- Cons: It is still required to type report after transactions command is entered.

5.11. Select Command

The select command is implemented by the SelectItemCommand class.

This command is accessed by the LogicManager#execute() to store the current selected food item into the storage as well as to update the current budget of the user.

The following activity diagram illustrates what happens when a user executes the select command:

5.11.1. Select Command Implementation

The LogicManager first executes FoodieBotParser to create a SelectItemCommandParser object.
SelectItemCommandParser then parses the select command to ensure that the select command is called only on the stall context. This process also checks if the user input is the food index or the food name that is available in that stall. Returning a SelectItemCommand object to the LogicManager.
The LogicManager then access SelectItemCommand#execute().
The SelectItemCommand#execute() retrieves the Budget from ModelManager.
The SelectItemCommand#execute() retrieves the selected Food and creates a PurchasedFood object with additional variables.
The SelectItemCommand#execute() adds the PurchasedFood to the existing transactions list for storage.
The SelectItemCommand#execute() updates the Budget and saves to the ModelManager.
The SelectItemCommand#execute() returns a CommandResult object to the LogicManger.

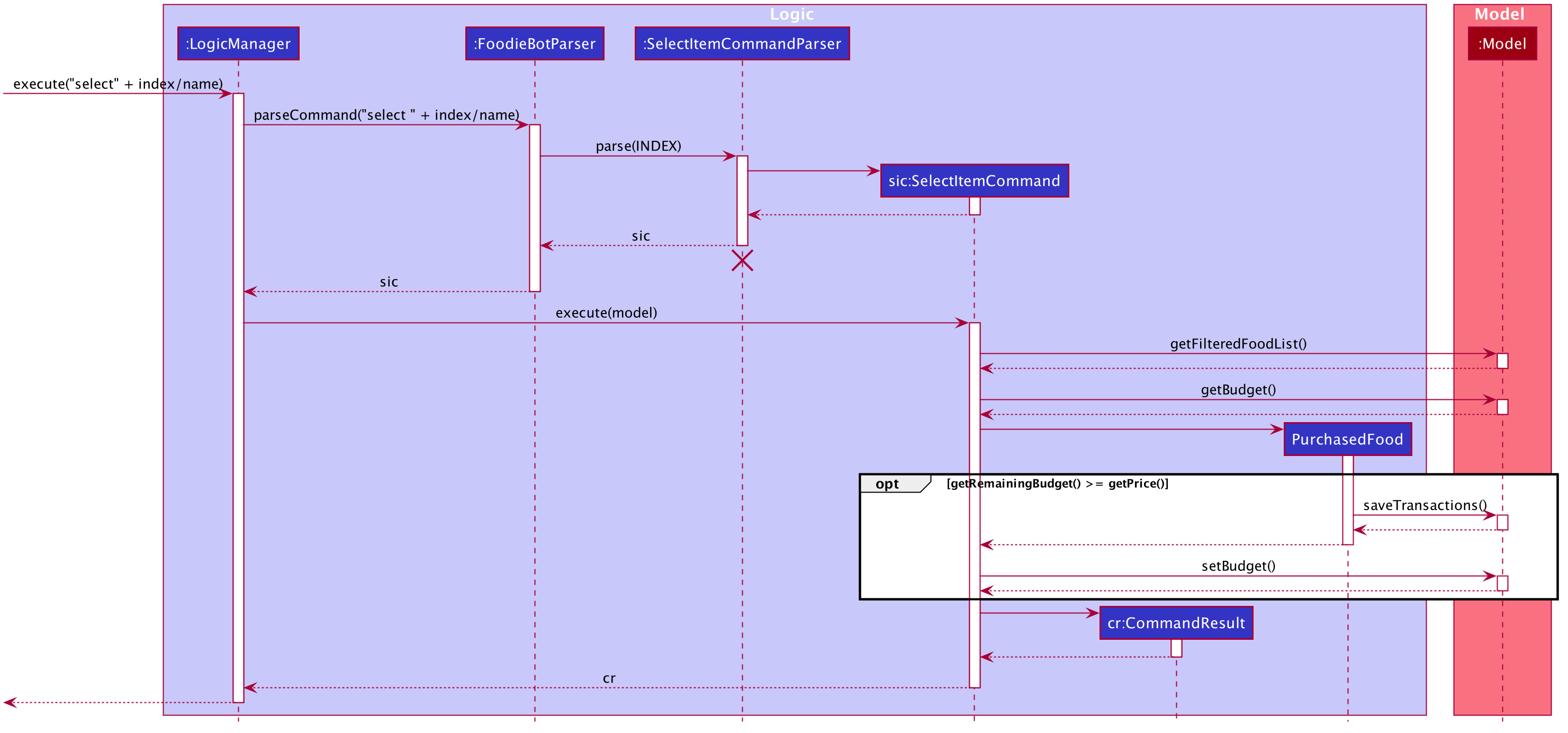

Below is the sequence diagram that summarizes what happens during the execution of the select command:

5.11.2. Select Design Considerations

Aspect: How food items are selected

Alternative 1 (current choice): Select food items with select INDEX
- Pros: Clean, easy to understand command syntax.
- Cons: More coding required as have to create a separate command class for the select command.
Alternative 2: Use enter INDEX command to select food
- Pros: Less coding required, can tag on use of already implemented enter command for canteens and stalls.
- Cons: Awkward syntax to enter food instead of _select_food.

5.12. Transactions Command

The transactions command is implemented by the TransactionsCommand class.

This command is accessed by the LogicManager#execute() to display the transaction of the given period if stated.

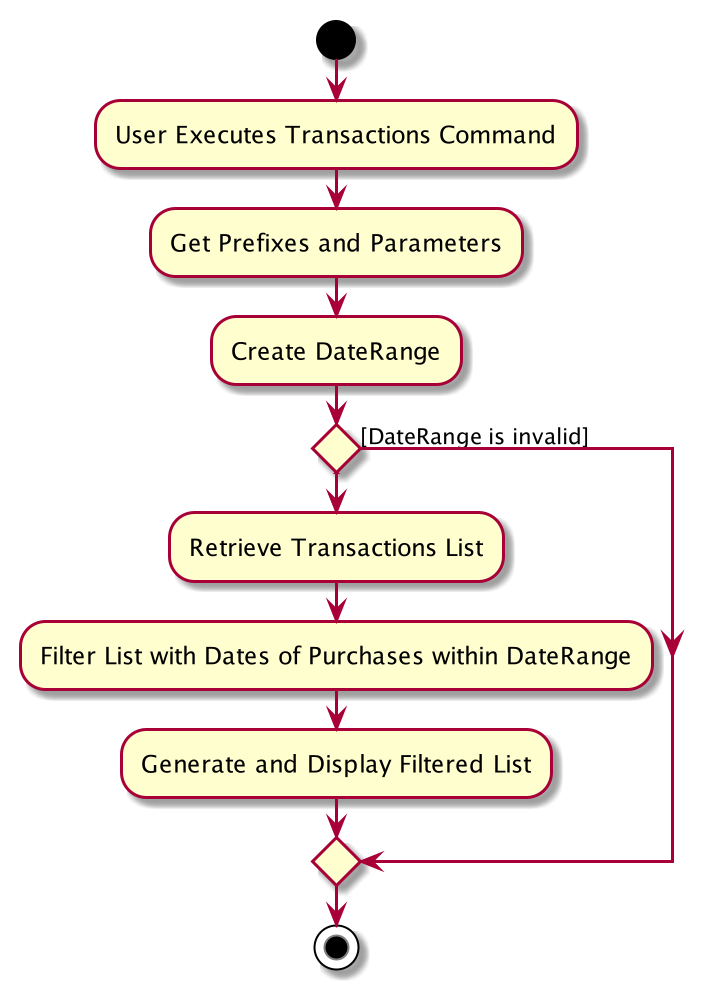

The following activity diagram illustrates what happens when a user executes the transactions command:

5.12.1. Transactions Command Implementation

The LogicManager first executes FoodieBotParser to create a TransactionsCommandParser object.
TransactionsCommandParser then parses an optional user input to determine the period of transaction report to display.
This Process returns a TransactionsCommand object to the LogicManager.
The LogicManager then access TransactionsCommand#execute().
The TransactionsCommand#execute() retrieve the transaction list from storage and display the list within the given period, or all transactions if the period is not stated.
The TransactionsCommand#execute() returns a CommandResult object to the LogicManger.

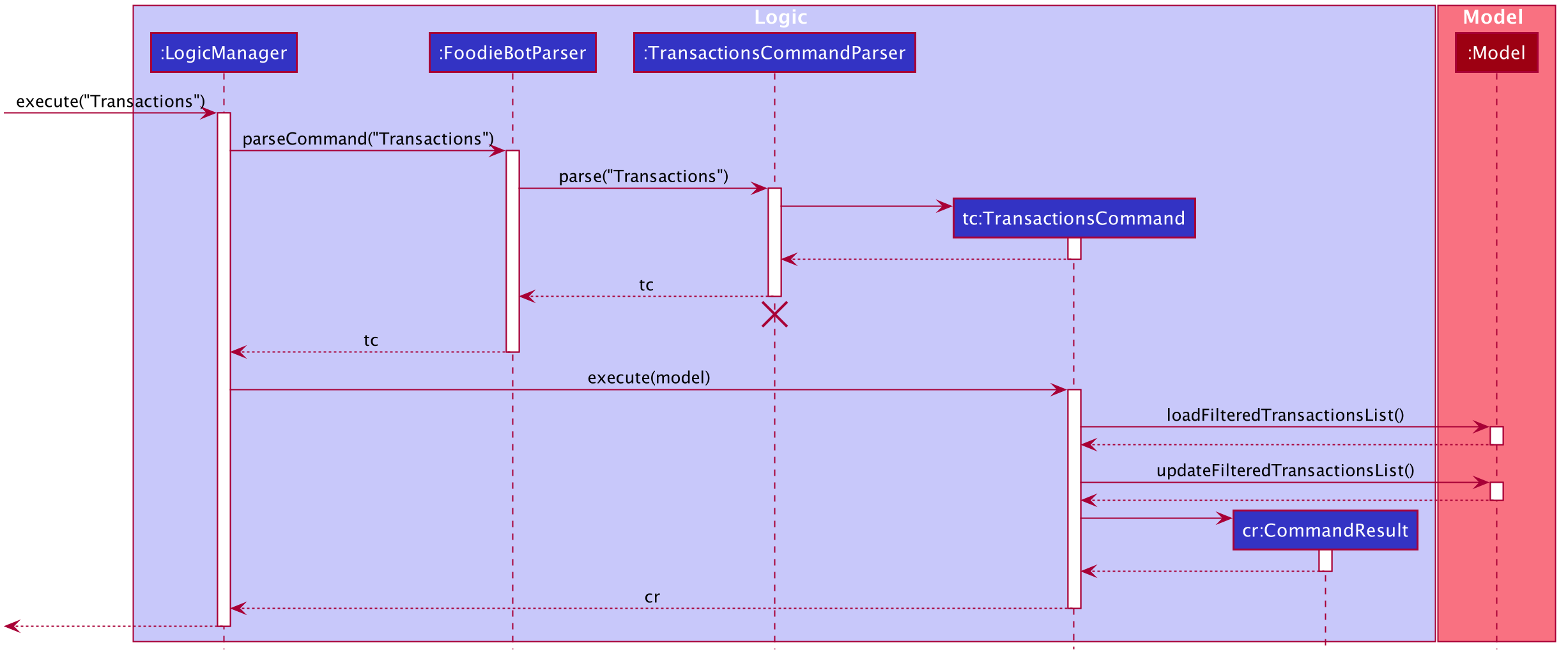

Below is the sequence diagram that summarizes what happens during the execution of the transactions command:

5.12.2. Transactions Design Considerations

Aspect: `transactions` should be included as a feature

Alternative 1 (current choice): transactions
- Pros: There is no need to worry about prefixes.
- Cons: To review or rate a food item, it has to always start with the transactions command.
Alternative 2: The food item is reviewed after selecting the canteen and/or stall without having transactions command.
- Pros: Convenience in being able to interact with the screen using multiple commands.
- Cons: Ui may look cluttered. Increases difficulty to test.

6. Testing

Refer to the guide here.

7. Dev Ops

Refer to the guide here.

Appendix A: Product Scope

Target user profile:

has a need to keep track for food expenses
are indecisive on what food to have in campus
does not know which canteens are near them
is comfortable with command-line inputs on desktop

Value proposition: get a food choice decided without having to work with GUI controls

Appendix B: User Stories

The user is not particularly limited to student and staff, it can be anyone who comes to visit NUS and is introduced to use the app

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority As a … I want to … So that I can…

Priority	As a …	I want to …	So that I can…
`* * *`	new user	see usage instructions.	refer to instructions when I forget how to use the App.
`* * *`	user	find nearest canteens.	get to the canteen quickly.
`* * *`	user	see which stores are open.	remove entries that I no longer need.
`* * *`	user who is new to NUS (tourist, visitor or freshman).	get a clear directory to the canteen	make my way to the canteen with ease.
`* * *`	user in campus	randomize a food choice.	try something new every now and then.
`* * *`	user who is budget conscious	know which food items fall within my budget.	I would not overspend.
`* * *`	user	take down some personal notes about the store, for example which dish at the mixed veg store is good.	see which is my favourite food amongst the NUS canteens.
`* *`	user who has an idea of what s/he wants to have	search for food items.	see which canteens sell them.
`* *`	user	see which food items I have not tried.	try all food items in the canteen.
`* *`	user with disability	know if there is convenient access to the canteen.	try all food items in the canteen.
`* *`	student on budget	search through prices of food items in different canteens.	discover which are the cheapest food items.
`* *`	user who do not carry a lot of cash	see the type of payment methods available.	prepare myself beforehand.
`* *`	user	track the frequency of the food I eat.	eat certain food in moderation and save money if i have been eating expensive food frequently.
`* *`	user	see some images of the food .	get some better understanding of the food aside from just the food description.
`*`	user who is health conscious	view the dietary options available for each canteen.	know which stall i can visit.

* * *

new user

see usage instructions.

refer to instructions when I forget how to use the App.

* * *

user

find nearest canteens.

get to the canteen quickly.

* * *

user

see which stores are open.

remove entries that I no longer need.

* * *

user who is new to NUS (tourist, visitor or freshman).

get a clear directory to the canteen

make my way to the canteen with ease.

* * *

user in campus

randomize a food choice.

try something new every now and then.

* * *

user who is budget conscious

know which food items fall within my budget.

I would not overspend.

* * *

user

take down some personal notes about the store, for example which dish at the mixed veg store is good.

see which is my favourite food amongst the NUS canteens.

* *

user who has an idea of what s/he wants to have

search for food items.

see which canteens sell them.

* *

user

see which food items I have not tried.

try all food items in the canteen.

* *

user with disability

know if there is convenient access to the canteen.

try all food items in the canteen.

* *

student on budget

search through prices of food items in different canteens.

discover which are the cheapest food items.

* *

user who do not carry a lot of cash

see the type of payment methods available.

prepare myself beforehand.

* *

user

track the frequency of the food I eat.

eat certain food in moderation and save money if i have been eating expensive food frequently.

* *

user

see some images of the food .

get some better understanding of the food aside from just the food description.

*

user who is health conscious

view the dietary options available for each canteen.

know which stall i can visit.

B.1. User Story for Version 2.0

Priority As a … I want to … So that I can…

Priority	As a …	I want to …	So that I can…
`v2.0`	user	place an order.	receive the food when I arrive.
`v2.0`	store owner	add new food items on the menu.	easily update the menu.
`v2.0`	store owner	set menu items to be on promotion.	attract more students to select the menu item.
`v2.0`	user	view the crowd condition.	avoid going to the canteen if it is too crowded.
`v2.0`	user	send an invitation to a friend.	have meals together with friends.

v2.0

user

place an order.

receive the food when I arrive.

v2.0

store owner

add new food items on the menu.

easily update the menu.

v2.0

store owner

set menu items to be on promotion.

attract more students to select the menu item.

v2.0

user

view the crowd condition.

avoid going to the canteen if it is too crowded.

v2.0

user

send an invitation to a friend.

have meals together with friends.

Appendix C: Use Cases

(For all use cases below, the System is FoodieBot and the Actor is the user, unless specified otherwise)

Use case: UC1 - Select a randomised stall suggestion

MSS

User requests to randomise
FoodieBot shows the randomised suggestions
User selects one of the randomised suggestion

Use case ends.

Extensions

1a. User wants to remove a randomised suggestion.
- 1a1. User requests to remove the suggestion.
- 1a2. FoodieBot updates the food item not to be suggested in the future

  Use case resumes at step 2.

Use case: UC2 - Set Budget

MSS

(Optional) User requests to view budget
FoodieBot shows the current budget with list of expenses
User requests to set budget
FoodieBot updates the budget for the specified period

Use case ends.

Extensions

3a. The given amount is invalid.
- 3a1. FoodieBot shows an error message.

  Use case resumes at step 2.

3b. The given period is invalid.
- 3b1. FoodieBot shows an error message.

  Use case resumes at step 2.

Use case: UC3 - Review Food Item

MSS

User requests to view transactions
FoodieBot shows a list of transactions
User requests to review the food item in the list
FoodieBot shows the edit screen for user to update
FoodieBot saves the user review

Use case ends.

Extensions

2a. The list is empty.

Use case ends.

3a. The given index is invalid.
- 3a1. FoodieBot shows an error message.

  Use case resumes at step 2.

5. The cancel command is supplied.

Use case resumes at step 2.

Use case: UC4 - Rate Food Item

MSS

User requests to view transactions
FoodieBot shows a list of transactions
User requests to rate the food item in the list
FoodieBot updates the review for the food item on the list

Use case ends.

Extensions

2a. The list is empty.

Use case ends.

3a. The given index is invalid.
- 3a1. FoodieBot shows an error message.

  Use case resumes at step 2.

3b. The given rating is invalid.
- 3b1. FoodieBot shows an error message.

  Use case resumes at step 2.
Fig1. Use Case Diagram

Appendix D: Non Functional Requirements

Should work on any mainstream OS as long as it has Java 11 or above installed.
Should be able to hold up to 1000 food items without a noticeable sluggishness in performance for typical usage.
A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
Should be usable by users who have never used an e-directory
The application should have images for the food items, if the food items are shown to the user
The system should be backward compatible with data produced by earlier versions of the system

Appendix E: Glossary

Activity Diagram: Use to model workflow.
API: Application Programming Interface
CLI: Command Line Interface
In-Memory: Type of database that relies primarily on memory for data storage.
MSS: Main Success Scenario
Mainstream OS: Windows, Linux, Unix, OS-X
PlantUML: Diagramming Tool that is used to create UML diagrams.
Sequence Diagram: Captures the interactions between multiple objects for a given scenario.
UI: User Interface

Appendix F: Product Survey

Product Name Pizza on iOS appstore

Author: Bryan Wu

Pros:

Allow randomisation for food that requires choosing of ingredients

Cons:

Allow choosing of ingredients for pizza only
Does not recommend which stores sell the pizza
